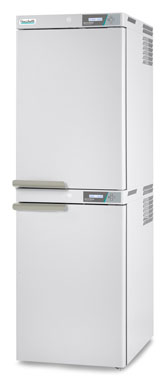

PLASMA-LABOR 2T 280 TOUCH
Small combined refrigerator + freezer, certified for storing plasma, with two solid doors and double cooling unit, Touch screen display managing both chambers and data recording.
The medical device rated, combined refrigerator/freezers PLASMA-LABOR 2T series, thanks to the two completely independent compartments, allow the simultaneous storage of blood at +4 °C and plasma at -20°C.
Two solid doors and the customizable interior fittings enhance at best the preservation of material.PLASMA-LABOR 2T medical devices comply with the international standards in force and, thanks to the different capacities offered and the possibility of customizing the internal fittings, they adapt to the needs of small and large laboratories and transfusion departments.
The Plasma-Freezer series includes Touch controller with graph and independent DMLP Touch board with backup battery for data recording and alarms even in the absence of power, external contacts for their remote control and RJ45 port, product temperature simulation probe and electric lock for access control. Fiocchetti's plasma freezers are Medical Devices certified, complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC, and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with DIN 13277 and 2011/65/CE (RoHS).- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 44 x 51,6 x 56 cm (x 2)
Nominal capacity: 140+140 lt (4,94 + 4,94 cu ft)
Net capacity: 128+128 lt (4,53 + 4,53 cu ft)
Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 40 mm.
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability
Interior lightning: Full LED, all lenght of inner chambers, with adjustable brightness
Refrigeration type: Professional ventilated
Defrost type: Automatic, adaptive, with vaporization of condensate water
Power consumption reduction with function Night & Day
![-1](/media/immagini/1805_n_LABOR-2T-282-APERTO_9447_640.jpg)
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .
Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.
![-2](/media/immagini/400_n_MEDIKA-202-CHIUSO_con-Touch_510x377.jpg)
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 4,6 kWh/24h
Power absorption/current: kW 0,14+1,18 / Amp 0,9+1,2
Inrush current: Amp 2,5+3,5
Noise level: <45 dBA
Heat rejection EN 12900: W 191
Shelves included nr.: 4 (2+2)
Shelves max nr.: 3+3
Wire shelves dimensions: cm 40x49
Drawers max nr.: 5+3
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 10x45x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 33x45x7,5
![-3](/media/immagini/1323_n_grafico_LABOR_2T_280_A_B_1.png)
For further information please click on "contacts" and fill in the form
