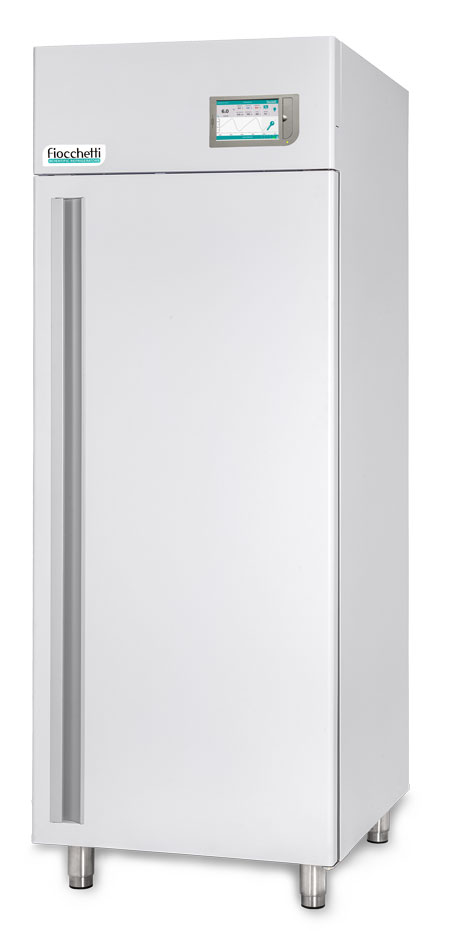

SPARK-PROOF 700 TOUCH
Refrigerator without any internal source of ignition,with touch screen display and featuring data recording

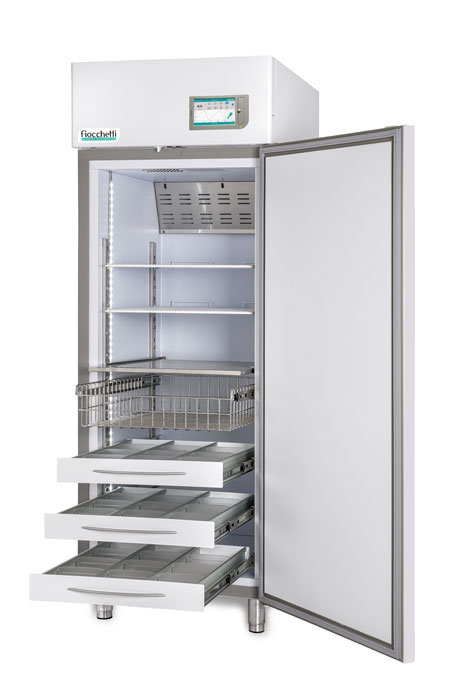

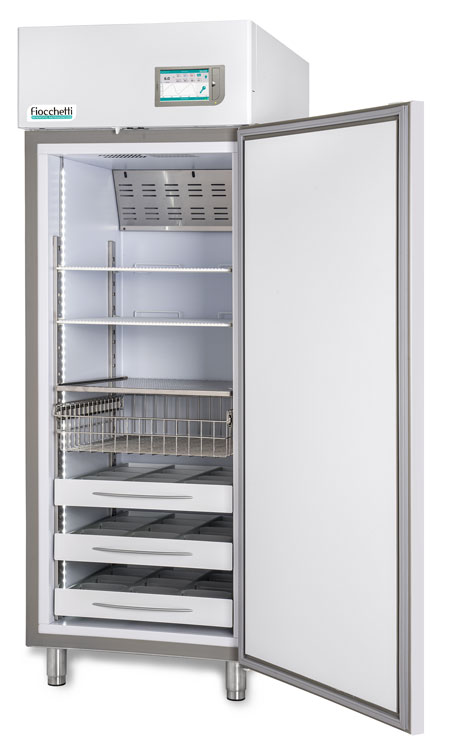

Refrigerators series SPARK-PROOF feature a clean and functional design, with solid door, and adjustable compartments to enhance product storage.
Designed in particular for use in chemical and industrial laboratories, for the storage of reagents and non-corrosive chemicals, that cannot come be contact with electrical sparks: SPARK-PROOF refrigerators are available in different capacities and can be customized following cusstomer’s needs
The solid door guarantees an improved thermal perfomance, while the ergonomic aluminium handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 60 x 68 x 150 cm
Nominal capacity: 700 l (24,72 cu ft)
Net capacity : 620 l (21,89 cu ft)
Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 75 mm
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.
Nr 4 height adjustable feet included to grant maximum stability
Refrigeration type: Professional ventilated
Defrost type: Automatic, adaptive, with vaporization of condensate water
Power consumption reduction with function Night & Day
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .
Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 1 kWh/24h
Power absorption/current: kW 0,12 / Amp 0,7
Inrush current: Amp 2,5
Noise level: 50 dBA
Heat rejection EN 12900: W 40
Shelves max nr.: 7
Wire shelves dimensions: cm 56x65
Drawers max nr.: 14
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 15x60x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 49x60x7,5
Stainless steel wire drawer nr.: 7
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,5x60,5x14,8
Stainless steel wire drawer max nr.: 14
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,5x60,5x6,2
