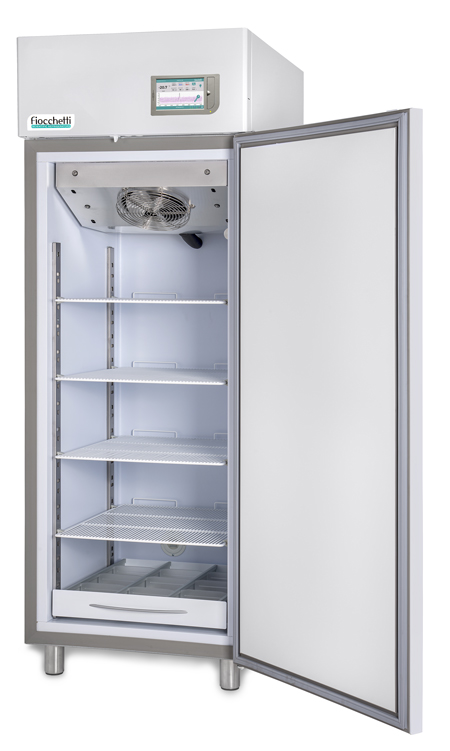

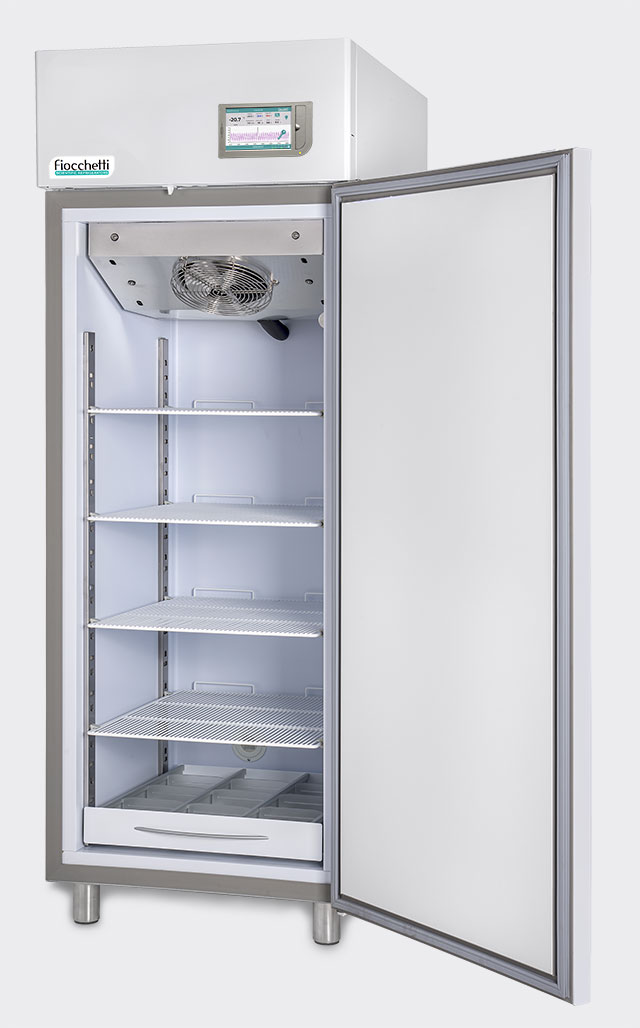

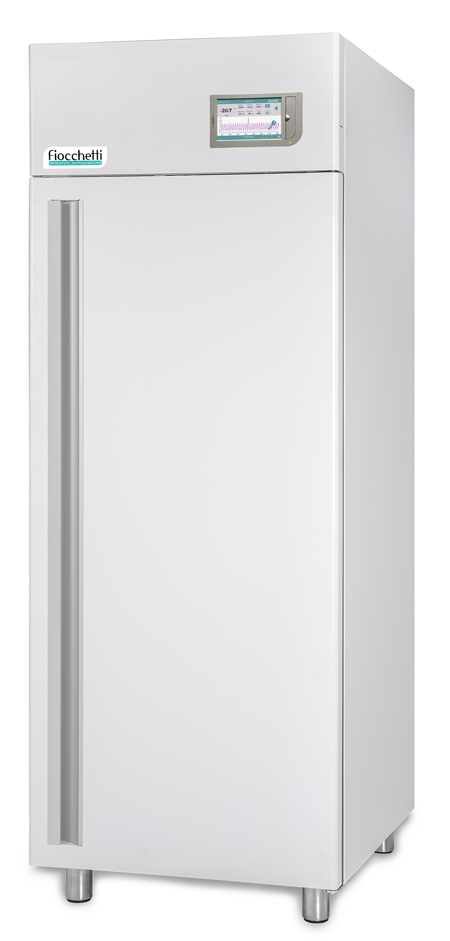

PLASMA-SUPERARTIC 700 TOUCH
Certified plasma freezer 'till -40°C, equipped with touchscreen controller, a solid door, featuring data and alarms recording
Medical devices series PLASMA-SUPERARTIC allow to store frozen bags of plasma and blood products
PLASMA-SUPERARTIC medical devices comply with the international standards in force and and include a Touch controller with graph and independent DMLP Touch module with backup battery for data recording and alarms, even in the absence of power, external contacts for their remote control and RJ45 port, product temperature simulation probe and electric lock for access control.
The solid door and the increased insulation thickness, guarantee the most efficient performance, while the intelligent defrosting and automatic evaporation of condensation water, avoid unit downtime and ice formation. Fiocchetti plasma banks are Medical Devices complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with DIN 13277 and 2011/65/CE (RoHS).
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 60 x 68,6 x 130 cm cm
Nominal capacity: 700 l (24,72 cu ft)
Net capacity : 544 lt (19,22 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 75 mm
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.
Nr 4 height adjustable feet included to grant maximum stability
Refrigeration type: Professional ventilated
Power consumption reduction with function Night & Day
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .
Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 11 kWh/24h
Power absorption/current: kW 1,5 / Amp 7
Inrush current: Amp 7
Noise level: <60 dBA
Heat rejection EN 12900: W 460
Shelves included nr.: 3
Shelves max nr.: 7
Wire shelves dimensions: cm 56x65
Drawers max nr.: 7
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 14,9x50x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 48,8x60x7,5
Stainless steel wire drawer max nr.: 7
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,5x63x14,8
Stainless steel wire drawer max nr.: 7
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,8x59x6,2
