3 bodies

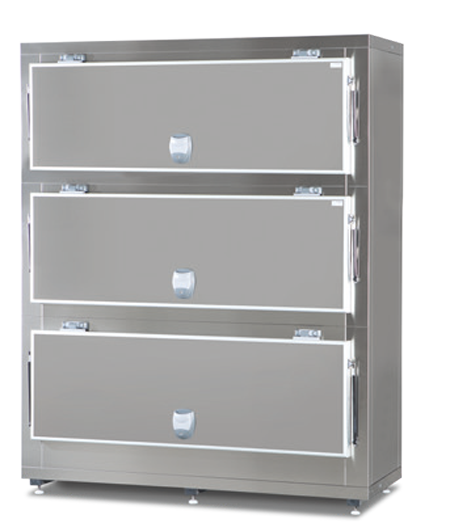

Side-loading modular mortuary chamber to be assembled on site, for 3 bodies, temperature range between +2 and +8°C.
Beside the broad range of front-loading MORTUARY CHAMBERS, we also offer some units in side-loading version, with single large doors. These are available with for short term storage only, with temperature range +2/8°, structure in white coated steel interior and exterior, or, on request, in stainless steel. The chamber is supplied disassembled, into panels, with its structure and monoblock to be installed on site.
The structure, in plastic-coated steel internal/external, is composed by 3 internal trays with handles, and a monoblock installed in the upper part of the unit. The controller has a main switch and alarms, for setting the temperature at 0.1°C and general control. Internal lighting and automatic evaporation of condensation water. It can be equipped with different accessories, such as the alarm system and temperature recording, and body trolleys for transport.
- FEATURES
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Storage capacity: 3 bodies
Number of doors: 3 with locking and name tag holder
Internal dimensions excluding monoblock: WxDxH 2260x860x2260Insulation type: Insulation in PUF at very high density, without any CFC
Insulation thickness: 80 mm.
Structure in steel white powder-coated outside and inside. N° 3 body trays: to accommodate, store and transport bodies of deceased. A seamless deep-drawn, extremely rugged structure of ground stainless steel without welded corners and edges on the inside ensures perfect cleaning. Two closed skids at the bottom of the body tray serve for noiseless transport on the roller tracks of the lift and transport truck or on the shelf system, and prevent moreover lateral tipping.
Interior lightning
Refrigeration type: ventilated
Defrost type: Automatic, with vaporization of condensate water
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R452A o R290
Voltage: 220/1/50 Hz
N° of body trays: 3
Nr. of doors: 3 cm 200 x 50
