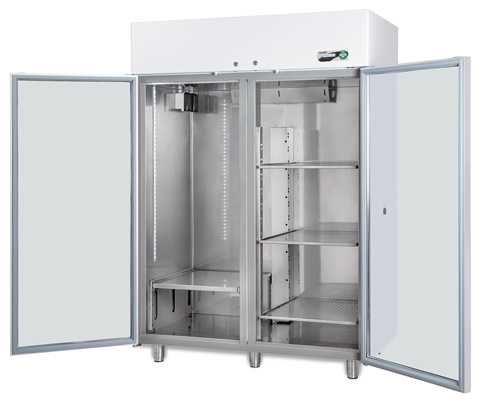

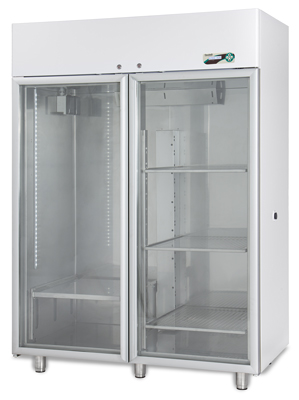

CROMATOGRAPHY 1500 ECT-F PLUS
Chromatography refrigerator with display and alarms, even in the event of a power failure.
Refrigerators series CROMATOGRAFIA feature a clean and functional design, specific for laboratories, with internal structure made of stainless steel 18/10 AISI 304, with perforated stainless steel shelf with increased capacity for the introduction of chromatographic devices, nr. 02 internal sockets and 35 mm cable hole.
Doors are made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°.
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 130 x 67 x 150 cm
Nominal capacity: 1500 l (59,27 cu ft)
Net capacity :1355 l (48,87 cu ft)
Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 70 mm back
Structure: Monocoque type, made of plasticized, atoxic white steel exterior, coated with a special antibacterial-type film, and in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 height adjustable feet included to grant maximum stability
Interior lightning: Full LED, all lenght of inner chamber
Refrigeration type: Professional ventilated
Defrost type: Automatic, adaptive, with vaporization of condensate water
ECT-F PLUS MICROPROCESSOR CONTROLLER
Temperature display and setting with: Display resolution: 0,1°C accuracy ± 0.3°C with backlit 16-character alphanumeric LCD display customizable in 5 languages, keyboard with 4 membrane keys able to communicate with the user by providing immediate and precise information on the status of the equipment.
It also has a back-up battery for power failure alarm for up to 48 hours, a minimum/maximum temperature recording and potential free contact for remote alarms. Configurable and customizable display in four different reading modesKeyboard: 4 simple membrane keys allow you to operate by following the intuitive instructions provided by the display. The user has the possibility to customize the password to protect switching on, switching off and changing the set-point and checking alarms even in the event of a power failure.
Alarms: The controller signals different types of temperature alarms, including high temperature alarm due to power failure, and records 12 events, in addition to the minimum and maximum temperature, which can be reset by the user . The dry contact on the board allows to remotely control the alerts.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 2,5 kWh/24h
Power absorption/current: kW 0,4 / Amp 1,8
Inrush current: Amp 6
Noise level: 55 dBA
Heat rejection EN 12900: W 125
No 1 sliding, perforated stainless-steel shelf, load capacity 100 kg included
Dimensions of the included sliding stainless steel shelf : cm 53,5x58,5
No 3 included stainless steel, perforated shelves
Dimensions of the included stainless steel shelves: cm 55x65
No. 2 included inner sockets
No. 1 included access port, diam. mm 35, with stopper
