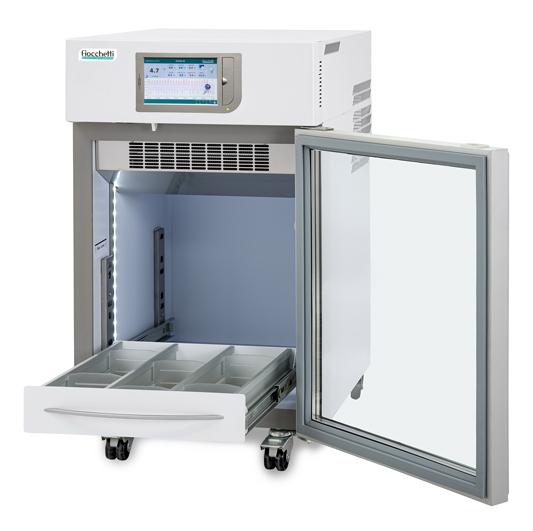

EMOTECA 100 TOUCH
Certified blood bank equipped with touchscreen controller, featuring data and alarms recording
Medical devices series EMOTECA are designed and certified for hospitals, blood transfusion centers, nursing homes and blood collection centers.
To comply with the most restrictive regulations, Fiocchetti’s Emoteca range offers the most comprehensive safety features for the storage of blood, blood-related products and donated breast milk. Emoteca series therefore features: Touch controller with temperature graph, an independent recording module "DMLP Touch", backup batteries for data recording and alarms messages during power failure events, external contacts for remote control+ Ethernet port, product temperature simulation probe, electric-digital lock for access control and extractable drawers with dividers for blood bags arrangement. Fiocchetti blood banks are Medical Devices complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with DIN 13277 and 2011/65/EC (RoHS)- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 44 x 51,6 x 42,1 cm
Blood bags capacity (450 ml): nr. 21 ('till 42 with an additional drawer)
Nominal capacity: 100 l (3,53 cu ft)
Net capacity: 96 l (3,40 cu ft)
Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 40 mm.
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.
Nr. 4 wheels (no. 2 frontal wheels with brake) permit to move refrigerator to sanitize the surrounding area.
Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness
Refrigeration type: Professional ventilated
Defrost type: Automatic, adaptive, with vaporization of condensate water
Power consumption reduction with function Night & Day
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the device, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status.
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module, as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
The medical devices destined to the storage of blood, plasma and blood components offer an electric digital lock accessible by an optional, generic user, or single dedicated password, the DMLP TOUCH module for independent recording of temperatures and of any alarm condition (even during power failure), a sensor to simulate product temperature and an external terminal board for dry contact and RJ45 port. The devices can always be upgraded with further accessories such as GSM and Wi.fi, and supervised by local or Cloud based monitoring systems.
Acoustic and visual alarms, mutable, will be triggered by any anomaly condition even during power failure thanks to supplied buffer batteries. The events are automatically recorded along with date, time, type of alarm, duration and highest temperature reached.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 0,5 kWh/24h
Power absorption/current: kW 0,14 / Amp 0,9
Inrush current: Amp 2,5
Noise level: 40 dBA
Heat rejection/emission EN 12900: W 20
N° max Griglie: 2
Drawers included nr.: 1
Drawers max nr.: 2
Inner dimensios of drawers with dividers (LxPxH) (each compartment): cm 10x45x7,5 (3)
