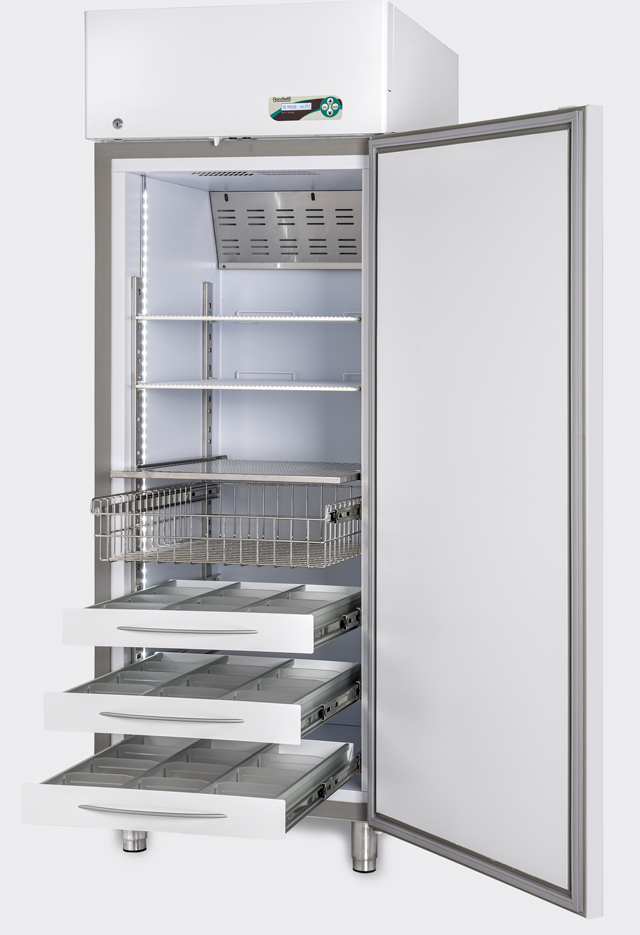

FREEZER 700 ECT-F PLUS
Laboratory freezer, solid door type, display and alarms, even in the event of a power failure
Laboratory freezers series FREEZER feature a clean and functional design, with solid door, and the possibility of a customizable internal configuration with shelves, drawers or baskets to enhance product storage.
They have been design specifically for the use in laboratories, hospital wards and pharma industries: FREEZER seriecomplies with international standards in force and answer to the most various requirements, thanks to the vast choice of volume capacities and to the chance of customizing the internal fittings.
Thesolid door guarantees an improved thermal perfomance, while the ergonomic aluminium handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 60 x 68 x 150 cm
Nominal capacity: 700 l (24,72 cu ft)
Net capacity : 620 l (21,89 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 75 mm
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.
Nr 4 height adjustable feet included to grant maximum stability
Interior lightning: Full LED, all lenght of inner chamber
Refrigeration type: Professional ventilated
ECT-F PLUS MICROPROCESSOR CONTROLLER
Temperature display and setting with: Display resolution: 0,1°C accuracy ± 0.3°C with backlit 16-character alphanumeric LCD display customizable in 5 languages, keyboard with 4 membrane keys able to communicate with the user by providing immediate and precise information on the status of the equipment.
It also has a back-up battery for power failure alarm for up to 48 hours, a minimum/maximum temperature recording and potential free contact for remote alarms. Configurable and customizable display in four different reading modesKeyboard: 4 simple membrane keys allow you to operate by following the intuitive instructions provided by the display. The user has the possibility to customize the password to protect switching on, switching off and changing the set-point and checking alarms even in the event of a power failure.
Alarms: The controller signals different types of temperature alarms, including high temperature alarm due to power failure, and records 12 events, in addition to the minimum and maximum temperature, which can be reset by the user . The dry contact on the board allows to remotely control the alerts.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 5 kWh/24h
Power absorption/current: kW 0,35 / Amp 2,5
Inrush current: Amp 7
Noise level: 55 dBA
Heat rejection EN 12900: W 208
Shelves max nr.: 7
Wire shelves dimensions: cm 56x65
Drawers max nr.: 7
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 15x50x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 49x60x7,5
Stainless steel wire drawer max nr.: 7
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,5x63x14,8
Stainless steel wire drawer max nr.: 7
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,8x49x6,2
