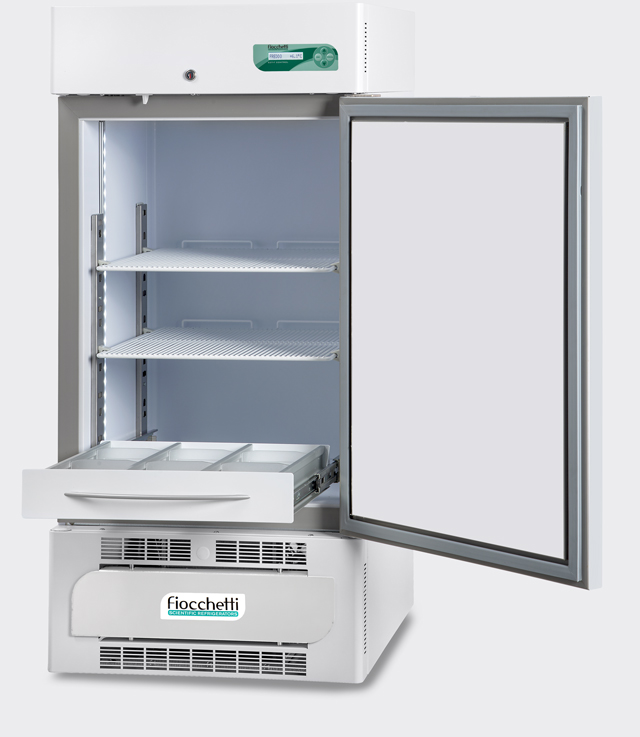

LABOR 170 ECT-F
Laboratory refrigerator, solid door type
Laboratory refrigerators series LABOR feature a clean and functional design, with solid door, and adjustable compartments to enhance product storage.
They have been design specifically for the use in laboratories, hospital wards and pharma industries: LABOR refrigerators comply with international standards in force and answer to the most various requirements, thanks to the vast choice of volume capacities and to the chance of customizing the internal fittings.
The solid door guarantees an improved thermal perfomance, while the ergonomic aluminium handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 50 x 48,5 x 73cm
Nominal capacity: 170 l (6,00 cu ft)
Net capacity : 179 l (6,32 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 70 mm back / 50 mmm sides
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability
Interior lightning: Full LED, all lenght of inner chamber
Refrigeration type: Professional ventilated
ECT-F MICROPROCESSOR CONTROLLER
Temperature display and setting with: Display resolution: 0,1°C accuracy ± 0.3°C with backlit 16 - character alphanumeric LCD display customizable in 5 languages, keyboard with 4 membrane keys able to communicate with the user by providing immediate and precise information on the status of the equipment.
Configurable and customizable display in four different reading modesKeyboard: 4 simple membrane keys allow you to operate by following the intuitive instructions provided by the display. The user has the possibility to customize the password to protect switching on, switching off and changing the set-point.
Alarms: The controller mainly signals three different types of temperature alarms and records 12 events.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 0,5 kWh/24h
Power absorption/current: kW 0,17 / Amp 1
Inrush current: Amp 3
Noise level: <45 dBA
Heat rejection EN 12900: W 20
Shelves max nr.: 4
Wire shelves dimensions: cm 46x45
Drawers max nr.: 6
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 11,8x40x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 39x40x7,5
Inner dimensions of stainless steel wire drawer (LxPxH): cm 43,5x40,5x6,2
