MEDIKA 2T 600 ECT-F

Code MET0601

Professional double temperature refrigerator, equipped with double cooling units, 600 l capacity (300+300 l), specific for drugs and vaccines, Featuring two glass doors, positive temperature setting in both compartments, developped for pharmacies.

+2/+15°C | +2/+15°C Temperature range

604 lt (21.33 cu ft) Capacity

104 x 66 x 196 cm External dimensions (WxDxH)

ECT-F Electronic Controller

Request a quote

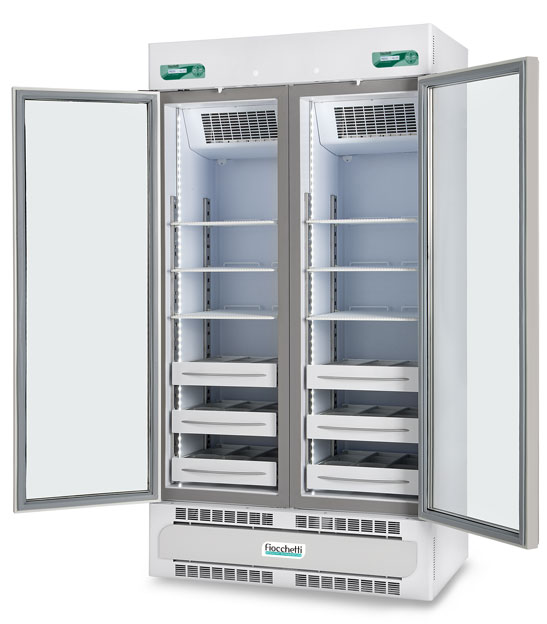

Double positive temperature refrigerator, with two glass doors and double cooling unit, 2 displays with alarms

The refrigerators for series MEDIKA 2T® feature a double compartment and double cooling unit, specific for storing drugs and vaccines at different temperatures. The two glass doors and the adjustable compartments enhance product storage.

MEDIKA 2T® series have been notably design for being used in pharmacies, since a two positive temperature setting is often required for the storage of medicines at different temperature ranges ® . As such, these refrigerators comply with international standards and the official pharmacopoeia.

Doors are made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible

FEATURES
CONTROLLER
TECHNICAL DATA

Download Resources

STRUCTURE AND REFRIGERATION

Inner dimensions: 44 x 48,5 x 140 cm (x 2)

Nominal capacity: 300+300 lt (10,59+10,59 cu ft)

Net capacity : 265+265 lt (9,35+9,35 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 40 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film. Inner bottom rounded corners. Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

Interior lightning: Full LED, all lenght of inner chamber

Refrigeration type: Professional ventilated

Defrost type: Automatic, adaptive, with vaporization of condensate water

ECT-F MICROPROCESSOR CONTROLLER

Temperature display and setting with: Display resolution: 0,1°C accuracy ± 0.3°C with backlit 16 - character alphanumeric LCD display customizable in 5 languages, keyboard with 4 membrane keys able to communicate with the user by providing immediate and precise information on the status of the equipment.

Configurable and customizable display in four different reading modes
Keyboard: 4 simple membrane keys allow you to operate by following the intuitive instructions provided by the display. The user has the possibility to customize the password to protect switching on, switching off and changing the set-point.

Alarms: The controller mainly signals three different types of temperature alarms and records 12 events.

REFRIGERATOR TECHNICAL DATA

Refrigerant gas type: R290
Energy consumption: 1,8 kWh/24h
Power absorption/current: kW 0,19 + 0,19 / Amp 1,3 + 1,3
Inrush current: Amp 3+3
Noise level: <50 dBA
Heat rejection EN 12900: W 75
Shelves max nr.: 6+6
Wire shelves dimensions: cm 40x49
Drawers max nr.: 12+12
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 10x45x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 33x45x7,5
