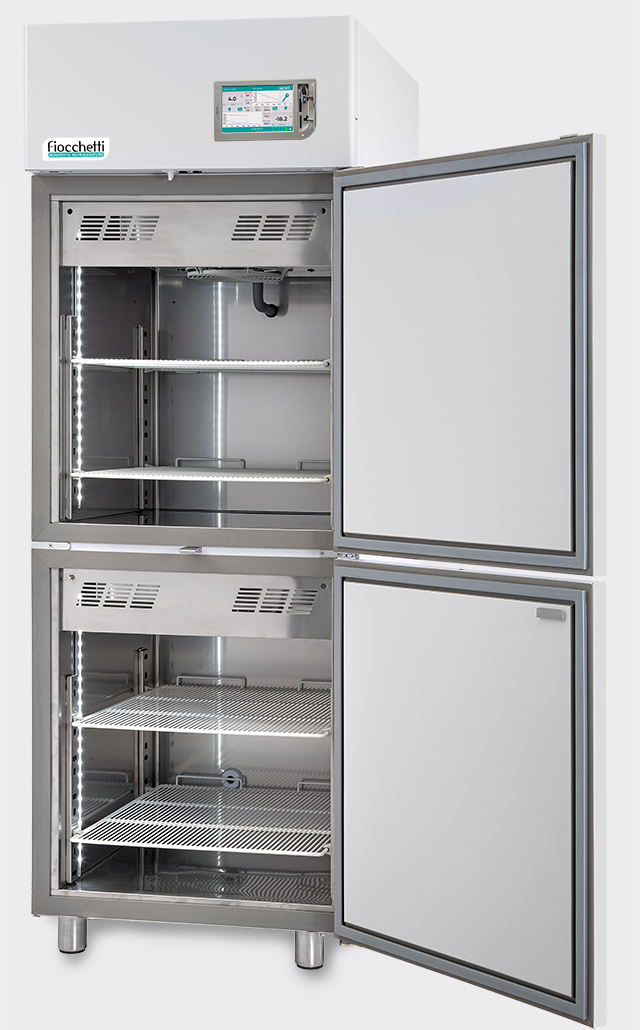

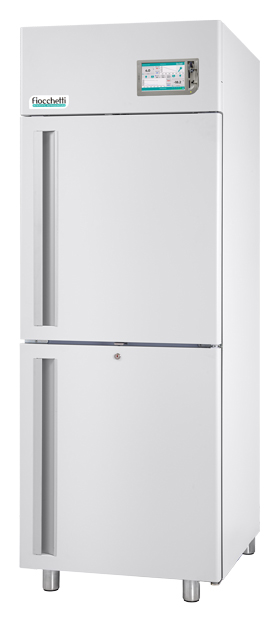

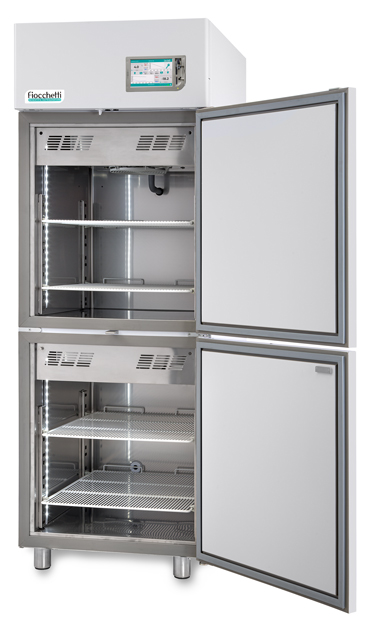

SUPERARTIC 2T 700 TOUCH
Combined refrigerator + freezer, medium size, with two solid doors and double cooling unit, Touch screen display managing both chambers and data recording.
Combined refrigerators + freezers SUPERARTIC 2T feature a double compartment (freezer is ‘till – 35°C), and double cooling unit. The two solid doors and the adjustable compartments enhance product storage.
SUPERARTIC 2T 700 is a professional refrigerator + freezer, ideal for special applications in laboratories and in pharmaceutical, healthcare and industrial research fields.The two solid doors have an integrated handle,a magnetic gasket sealing on all four sides, an automatic lockand return spring, door stop at 90°and reversible opening side.
The intelligent defrosting and automatic evaporation of condensation water avoid machine downtime and ice formation. Inside, shelves, drawers or baskets enhance product storage.- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 60 x 68 x 70 / 60 x 68 x 74 cm
Nominal capacity: 350+350 lt (12,36 + 12,36 cu ft)
Net capacity : 260+230 lt (9,19 + 8,13 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 60 mm
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 height adjustable feet included to grant maximum stability
Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness
Refrigeration type: Professional ventilated
Power consumption reduction with function Night & Day
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .
Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 7 kWh/24h
Power absorption/current: kW0,17+1,3 / Amp 1+6
Inrush current: Amp 3+5
Noise level: <60 dBA
Heat rejection EN 12900: W 292
Shelves max nr.: 3+3
Wire shelves dimensions: cm 56x65
Drawers max nr.: 5+3
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 15x50x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 49x60x7,5
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,5x63x14,8Stainless steel wire drawer max nr.: 5+3
Inner dimensions of stainless steel wire drawer (LxPxH): cm 53,8x49x6,2
