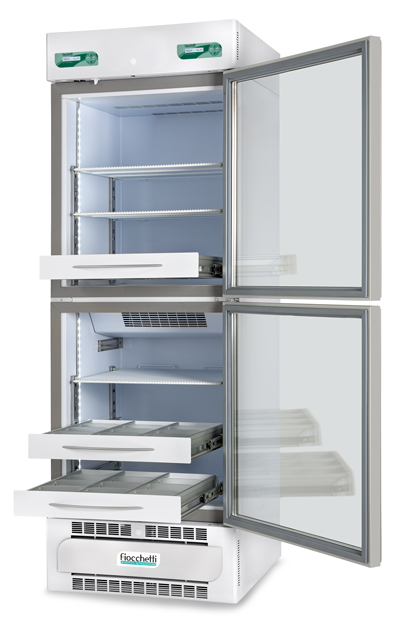

VISION 2T 500 ECT-F
Combined refrigerator + freezer with two glass doors and double cooling unit, 2 displays with alarms
Combined refrigerators + freezers series VISION 2T feature a double compartment and double cooling unit, specific for storing drugs and vaccines at different temperatures. The two glass doors and the adjustable compartments enhance product storage.
Combined refrigerators + freezers VISION 2T have been notably design for being used in pharmacies, hospitals and laboratories: the two glass doors enhance product storage, with an elegant design. VISION 2T comply with international standards and the official pharmacopoeia.
The two doors are made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, low emissivity glass door for the freezer compartment and profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 60 x 58,8 x 70 / 60 x 58,8 x 74 cm
Nominal capacity: 250+250 lt (8,82+8,82 cu ft) c/p>
Net capacity : 249+230 lt (8,80 + 8,13 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 75 mm back / 60 mmm sides
Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film. Inner bottom rounded corners. Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability
Interior lightning: Full LED, all lenght of inner chambers
Refrigeration type: Professional ventilated
ECT-F MICROPROCESSOR CONTROLLER
Temperature display and setting with: Display resolution: 0,1°C accuracy ± 0.3°C with backlit 16 - character alphanumeric LCD display customizable in 5 languages, keyboard with 4 membrane keys able to communicate with the user by providing immediate and precise information on the status of the equipment.
Configurable and customizable display in four different reading modesKeyboard: 4 simple membrane keys allow you to operate by following the intuitive instructions provided by the display. The user has the possibility to customize the password to protect switching on, switching off and changing the set-point.
Alarms: The controller mainly signals three different types of temperature alarms and records 12 events.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 5,5 kWh/24h
Power absorption/current: kW 0,17+0,32 / Amp 1+2,3
Inrush current: Amp 3+5
Noise level: <50 dBA
Heat rejection EN 12900: W 229
Shelves max nr.: 3+3
Wire shelves dimensions: cm 56x55
Drawers max nr.: 5+3
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 15x50x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 49x50x7,5
For further information please click on "contacts" and fill in the form
