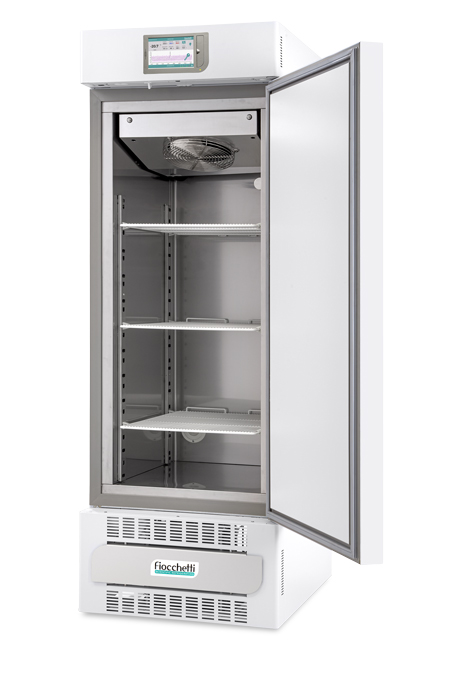

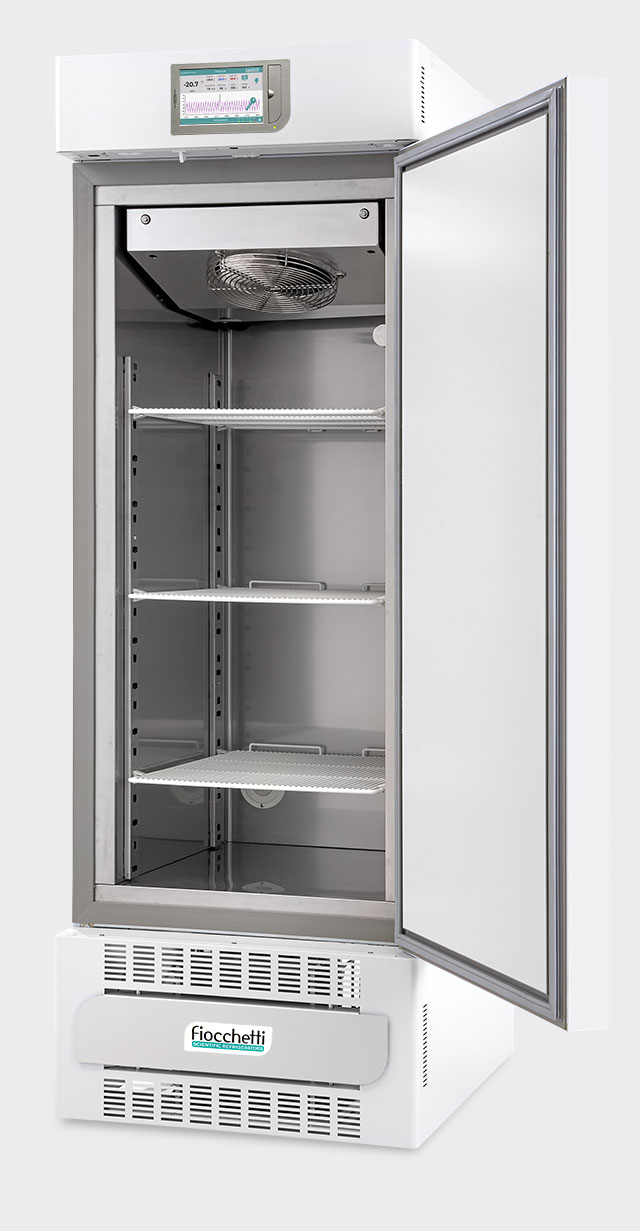

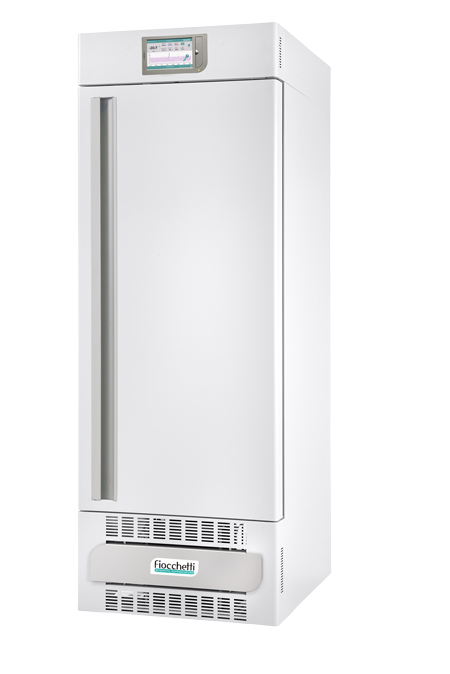

SUPERARTIC 400 TOUCH
Laboratory freezer 'till -40°C, solid door type and touch screen display and featuring data recording
Laboratory freezer serie SUPERARTIC features a clean and functional design, heavy duty, easy to use and solid door type, and adjustable compartments to enhance product storage.
They have been specifically designed for the use in laboratories and industry (not only pharma): SUPERARTIC freezerscomply with international standards in force and answer the professional needs of research centers requiring stabilized temperatures down to -40°C and high performances.
The solid door and the oversize insulation thickness guarantee the most efficient performance, while the intelligent defrosting and automatic evaporation of condensation water avoid machine downtime and ice formation. Fiocchetti’s aesthetic design is also apparent in the door, thanks to its ergonomics, with recessed handle and reversible opening direction.
Power consumption reduction with function Night & Day
- FEATURES
- CONTROLLER
- TECHNICAL DATA
STRUCTURE AND REFRIGERATION
Inner dimensions: 51 x 61 x 125,5 cm
Nominal capacity: 400 l (14,12 cu ft)
Net capacity : 360 lt (12,72 cu ft)
Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
Insulation thickness: 70 mm back / 50 mmm sides
Structure: Monocoque type, made of 18/10 Aisi 304 stainless steel interior, and exterior in plasticized, atoxic white steel exterior, coated with a special antibacterial-type film. Inner bottom rounded corners. Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability
Refrigeration type: Professional ventilated
Power consumption reduction with function Night & Day
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .
Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.
REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 7,5 kWh/24h
Power absorption/current: kW 2 / Amp 8,3
Inrush current: 3 Amp
Noise level: <55 dBA
Heat rejection EN 12900: W 315
Shelves max nr.: 6
Wire shelves dimensions: cm 47x60
Drawers max nr.: 6
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 12x55x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 39x55x7,5
